vRealize Automation 8.x - Delete Resource From Deployment

If you have ever tried to create a deployment, succeeded, and then found out that it didn’t actually deploy a VM but thinks it did and now fails to delete the deployment because it cannot delete the thing it didn’t create (…yes, this happens…sadly) let me save you a LOT of heartache with support.

The first thing you will need to do is SSH into the primary vRA instance in the cluster as root.

Once you are there are going to need to get inside the kubernetes pod hosting the postgres DB and manually delete entries.

Now would be a good time to tell you that VMWare DOES NOT SUPPORT YOU MANUALLY EDITING THE DATABASE IN THIS OR ANY OTHER WAY AND YOU SHOULD NOT DO ANY OF WHAT I AM EXPLAINING.

The safe bet? Make them fix it. That is going to take winding your way through some painful conversations and a fair amount of “try this API call” that is probably malformed, before they finally escalate to engineering to do…what I’m showing you how to do here.

But at least if they screw it up they get fired and not you. :)

Annnnyway, back to making some bad decisions eh?

Ok, so if you are doing this kubectl should NOT be something you are learning about for the first time. If it is…please call support…or do this in a lab…

kubectl -n prelude get pods

You want the little guy that says “postgres-0”, in fact you can skip the previous step and just know it is going to be named postgres-0…I’m just putting this here so if it changes in the future you know where to find it. I would recommend doing this FROM the primary VRA node TO the primary postgres pod…why tempt fate.

Next we need to exec a bash command into the pod:

kubectl exec -n prelude -it postgres-0 — /bin/bash

Now we need to elevate:

su postgres

Now we are going to use the postgres command line client to find and trash our misbehaving entries.

psql catalog-db

Note if it doesn’t dump you into that DB you can list the DB’s with \l and then change to that db with \c catalog-db

Now to find out problem children. If you are doing this IN A LAB LIKE A SMART PERSON…ahem…you likely don’t have many entries…you can just:

SELECT * FROM dep_resource;

Now, depending on your screen size and number of entries you may want to use \x before this command, it can make it easier to read just remember you will need to \x again when you are done before you will be able to exit the DB with \q…I don’t know why that is a thing, but it is…

Find the name of the resource you want to delete and run the following command IN A LAB.

DELETE FROM dep_resource WHERE name ~ ‘unique part of the resource name here’

OR if you named them all very similarly don’t use “like”, be specific.

DELETE FROM dep_resource WHERE name = ‘full name of resource here’

Once done exit the db with \q (don’t forget \x before if you turned on expanded display) and go check cloud assembly, you should see it no longer lists the resources in question, you should now be able to delete the deployment.

Here are some things you can spend the time you saved on a call with support doing:

  • Wondering why the “ignore delete errors” button doesn’t actually ignore these errors.

  • Wondering why it would let you create VM’s with invalid names in the first place.

  • Wondering why it thinks it deployed a resource it did not, in fact, deploy…

  • Drinking to forget the pain…

Or you could spend that time moving on to the next broken thin in vRA 8.x

Hello, World!

vRealize 8.1 Embedded vRO - Add PowerShell Host using Kerberos Auth

Prepare the PowerShell Host WinRM Configuration:

winrm quickconfig
winrm set winrm/config/service/auth @{Kerberos="true"}
winrm set winrm/config/service @{AllowUnencrypted="true"}
winrm set winrm/config/winrs @{MaxMemoryPerShellMB="2048"}

Create a krb5.conf file with the following contents:

[libdefaults]
default_realm = DOMAIN.COM

[realms]
DOMAIN.COM = {
kdc = dc.domain.com
default_domain = domain.com
}

[domain_realm]
.domain.com=DOMAIN.COM
domain.com=DOMAIN.COM

Copy or create the krb5.conf file at the following location on the vRA appliance: /data/vco/usr/lib/vco/app-server/conf/krb5.conf

Finally you need to chmod 644 the file you just uploaded.

Now you need to redeploy the vRO pod

kubectl -n prelude get pods

You are looking for an entry like this:

vco-app-<hash>-<hash>

Then you want to issue the following command to destroy the pod, after a few seconds a new one will be deployed in it’s place:

kubectl -n prelude delete pod vco-app-<hash>-<hash>

Don’t forget to use the name of the pod you got in the previous command and not just copy and paste what is shown here.

Now go to the vRealize Orchestrator web interface, go to Workflows, run the Add Powershell Host Workflow and when you specify the credentials to use make sure to use the UPN (user@domain) format.

Getting Started with VSCode and GitHub

Step 1: Download VSCode and install it.

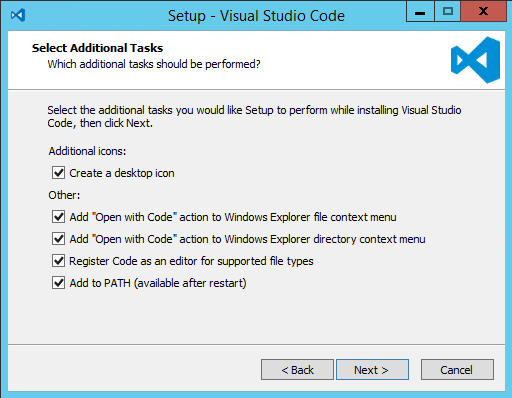

The settings I personally choose...

The settings I personally choose...

Step 2: Configure PowerShell syntax highlighting and VSIcons



Click View -&gt; Extensions

Click View -> Extensions

Click Install next to vscode-icons, this isn't required it is just a really nice touch IMO...

Click Install next to vscode-icons, this isn't required it is just a really nice touch IMO...

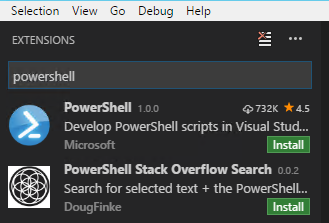

After you click install don't click reload, search for powershell and click Install next to PowerShell (the StackOverflow extension is awesome too!), click Reload when it is done...

After you click install don't click reload, search for powershell and click Install next to PowerShell (the StackOverflow extension is awesome too!), click Reload when it is done...

Click File -&gt; Preferences -&gt; File Icon Theme...

Click File -> Preferences -> File Icon Theme...

Select VSCode Icons from the list...

Select VSCode Icons from the list...

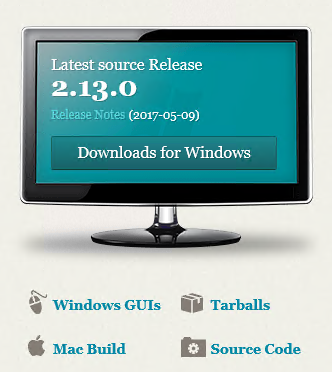

Step 3: Download and Install Git SCM

For most users simply selecting the default options for the installation is sufficient, there are a lot of questions, but for most, the default it fine...

For most users simply selecting the default options for the installation is sufficient, there are a lot of questions, but for most, the default it fine...

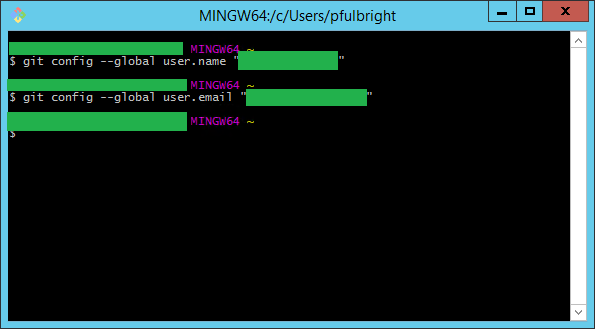

Step 4: Basic Git Configuration

git config --global user.name "Bob Dole"git config --global user.email "user@email.com"

git config --global user.name "Bob Dole"
git config --global user.email "user@email.com"

Step 5: Create and Pull a GitHub Repository

When you log into GitHub, in the upper right corner you will see a + symbol, click that and choose "New Repository"

When you log into GitHub, in the upper right corner you will see a + symbol, click that and choose "New Repository"

Enter a Repository Name, in this case I chose PowerShell-Scripts, description is optional

Enter a Repository Name, in this case I chose PowerShell-Scripts, description is optional

Launch Git BASH (this was installed as part of Git) and navigate to the local location you want the repository to reside at.Once there type the following:

Launch Git BASH (this was installed as part of Git) and navigate to the local location you want the repository to reside at.

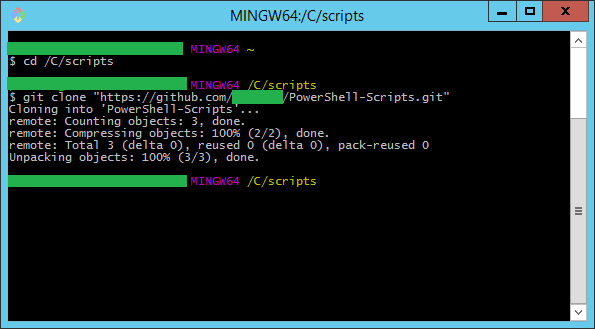

Once there type the following:

    git clone <https address of your repository>.git
You will be prompted to log in to GitHub...

You will be prompted to log in to GitHub...

Once you log in you now want to open the folder you just cloned the repository to (the way we did it there should be a sub folder called "PowerShell-Scripts" located at the path you were in when you ran the git clone. Click the Explorer tab on the l…

Once you log in you now want to open the folder you just cloned the repository to (the way we did it there should be a sub folder called "PowerShell-Scripts" located at the path you were in when you ran the git clone. Click the Explorer tab on the left hand Activity Bar.

Browse to the folder you cloned the repository to.Once you have opened this folder click File -&gt; New File

Browse to the folder you cloned the repository to.

Once you have opened this folder click File -> New File

Once the file is open we need to tell VSCode that this is a PowerShell file, if you open a .ps1 file it automatically knows, in the case of a new file we need to tell it, so hit CTRL+SHIFT+P and type "change lang" and hit enter and type "ps" and hit…

Once the file is open we need to tell VSCode that this is a PowerShell file, if you open a .ps1 file it automatically knows, in the case of a new file we need to tell it, so hit CTRL+SHIFT+P and type "change lang" and hit enter and type "ps" and hit enter, now VSCode knows which Syntax and IntelliSense to use.

You will also see that upon doing that it will open a PowerShell terminal pane below your script pane.

You will also see that upon doing that it will open a PowerShell terminal pane below your script pane.

After you type some example code click File -&gt; Save (or hit CTRL+S) and save your file t the folder your repository exists in.

After you type some example code click File -> Save (or hit CTRL+S) and save your file t the folder your repository exists in.

Click on Source Control in the Activity Bar and you shoul dnow see your file there, when you hover over it you should see a + symbol, click that, this stageds your changes you just made.

Click on Source Control in the Activity Bar and you shoul dnow see your file there, when you hover over it you should see a + symbol, click that, this stageds your changes you just made.

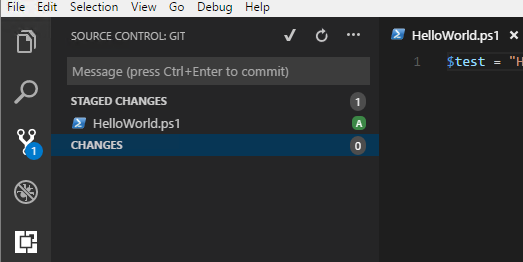

You should see the "U" change to an "A". Click the Check Mark at the top of the pane.

You should see the "U" change to an "A". Click the Check Mark at the top of the pane.

It will ask you to enter a commit comment, this should be a succinct description of the changes you are committing, in many cases your first commit comment will be "initial commit". When you view the files on GitHub you can see the commit comment as…

It will ask you to enter a commit comment, this should be a succinct description of the changes you are committing, in many cases your first commit comment will be "initial commit". When you view the files on GitHub you can see the commit comment associated with the last commit that included that individual file/folder.

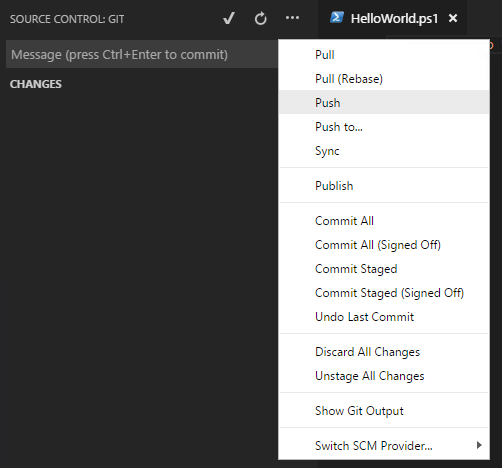

Once your commit is complete you need to "Push" your changes up to Git, to do this, on the Source Control pane click the Ellipsis and select "Push", barring any issues the changes will now be pushed up to GitHub available for cloning and syncing wit…

Once your commit is complete you need to "Push" your changes up to Git, to do this, on the Source Control pane click the Ellipsis and select "Push", barring any issues the changes will now be pushed up to GitHub available for cloning and syncing with new users or your other development locations.

There you go, changes are now secure, feel free to break your incredibly complex Hello World and you will be able to recover the last working version and collaborate with others on long term scripts requiring multiple developers.

There you go, changes are now secure, feel free to break your incredibly complex Hello World and you will be able to recover the last working version and collaborate with others on long term scripts requiring multiple developers.

DSC: Script Resource GetScript

If you look on the TechNet page for the Script Resource you will see

GetScript = { <# This must return a hash table #> }

Which is technically speaking, true...usually...right up until the point you try to run Get-DscConfiguration on a machine, in which case it will get to that script resource and die saying:

The PowerShell provider returned results that are not valid from Get-TargetResource. The <keyname> key is not a valid property in the corresponding provider schema file. The results from Get-TargetResource must be in a Hashtable format. The keys in the Hashtable must be the same as the properties in the corresponding provider schema file.

The consensus around the web is that the error is saying you have to return a hashtable with keys that match the properties of the schema, so in this case the schema for the Script resource is:

#pragma namespace("\\\\.\\root\\microsoft\\windows\\DesiredStateConfiguration")

[ClassVersion("1.0.0"),FriendlyName("Script")]
class MSFT_ScriptResource : OMI_BaseResource
{
  [Key] string GetScript;
  [Key] string SetScript;
  [Key] string TestScript;
  [write,EmbeddedInstance("MSFT_Credential")] string Credential;
  [Read] string Result;
};

Which means in order for your Script resource to be compliant you need to return:

GetScript = {return @{ Result = ();GetScript=$GetScript;TestScript=$TestScript;SetScript=$SetScript}}

But when you think about it, this doesn't make a lot of sense. In every other resource I can think of it makes absolute sense, because the parameters in the schema determine the status of the resource you want to control, not how you control it and how you test for it.

It would be like Get-TargetResource for the Registry resource not returning the information about the key, its value, etc. but rather returning that AND returning the entire contents of MSFT_RegistryResource.psm1 which would make literally no sense. We don't care HOW you check or HOW you set, and returning a Get-Script with the contents of Get-Script is...batty...we care about the resource being controlled.

Luckily, the statement that "the keys need to match the parameters" can be interpreted to mean you need to match ALL of them, or it can be interpreted to mean "they just need to exist" and in the case of the Script resource Result does exist. And that is what we need to return.

GetScript = {return @{Result=''}}

They really need to update the TechNet page to say "GetScript needs to return a hash table with at least one key matching a parameter in the schema for the resource".

No need to return potentially hundreds of lines of code in some M.C. Escher-like construct containing itself. Just stick to returning information about the resource you are controlling. If your script sets the contents of a file, return the contents of that file. Not the contents of the file AND the script you used to set it AND the script you used to test it.

DSC: Registry Resource Binary Comparison Bug

Ever used DSC to set a binary registry value only to find out no matter how many times it sets it, it always thinks the value is incorrect?

The problem lies in MSFT_RegistryResource.psm1, @Ln926

$Data | % {$retString += [String]::Format("{0:x}", $_)}

Should be:

$Data | % {$retString += [String]::Format("{0:x2}", $_)}

Because it isn't, the value data, in this case:

ValueData = @("8232c580d332674f9cab5df8c206fcd8")

Which is 82 32 c5 80 d3 32 67 4f 9c ab 5d f8 c2 06 fc d8 in HEX dies because that 06 towards the end gets turned into a 6, even if that were valid hex it wouldn't match the input and thus the Test-DSCResource fails every single time.

SCCM 2012: Get Locked Apps/Packages

$query = "SELECT		SEDO_LockState.LockStateID,
			SEDO_LockState.AssignedUser,
			SEDO_LockState.AssignmentTime,
			SEDO_LockState.AssignedUser,
			SEDO_LockState.AssignedMachine,
			v_SmsPackage.Name,
			fn_ListApplicationCIs.DisplayName,
			fn_ListApplicationCIs.Manufacturer

FROM		SEDO_LockState INNER JOIN
				SEDO_LockableObjects ON SEDO_LockState.LockID = SEDO_LockableObjects.LockID INNER JOIN
					SEDO_LockableObjectComponents ON (SEDO_LockableObjects.ObjectID = SEDO_LockableObjectComponents.ObjectID) LEFT OUTER JOIN
						v_SmsPackage ON SEDO_LockableObjectComponents.ComponentID = v_SmsPackage.SEDOComponentID LEFT OUTER JOIN
						CI_ConfigurationItems ON SEDO_LockableObjectComponents.ComponentID = CI_ConfigurationItems.SEDOComponentID LEFT OUTER JOIN
						fn_ListApplicationCIs(1033) ON CI_ConfigurationItems.CI_UniqueID = fn_ListApplicationCIs.CI_UniqueID
WHERE		(SEDO_LockState.LockStateID <> 0)"

$server = ""
$db = ""
$constring = "Server=$server;Database=$db;Integrated Security=True"

$connection = New-Object System.Data.SqlClient.SqlConnection
$connection.ConnectionString = $constring
$connection.Open()

$command = $connection.CreateCommand()
$command.CommandText = $query

$result = $command.ExecuteReader()

$table = New-Object System.Data.DataTable
$table.Load($result)

$connection.Close()

$table.Rows | Format-Table

Bundle DSC Waves for Pull Server Distribution

This assumes you have WinRar installed to the default path, this will also delete the source files after it creates the zip files.

After running this script copy the resulting files to the DSC server in the following location: "C:\Program Files\WindowsPowerShell\DscService\Modules"

$modpath = "-path to dsc wave-"
$output = "-path to save wave to-"
[regex]$reg = "([0-9\.]{3,12})"
if((Test-Path $output) -ne $true){ New-Item -Path $output -ItemType Directory -Force }
foreach($module in (Get-ChildItem -Path $modpath)) {
    $psd1 = ($module.FullName+"\"+$module+".psd1")
    $content = Get-Content $psd1
    foreach($line in $content) {
        if($line.Contains("ModuleVersion")) {
            $outpath = $output+"\"+$module.Name+"_"+($reg.Match($line).Captures)
            Write-Host ""
            if(Test-Path -Path $outpath) {
                Copy-Item -Path $module.FullName -Destination $outpath -Recurse
            }else{
                New-Item -Path $outpath -ItemType Directory -Force
                Copy-Item -Path $module.FullName -Destination $outpath -Recurse
            }
            & "C:\Program Files\WinRar\winrar.exe" a -afzip -df -ep1 ($outpath+".zip") $outpath
        }
    }
}
Start-Sleep -Seconds 1
New-DscCheckSum -Path $output

PowerShell DSC: Remote Monitoring Configuration Propagation

So if you are like me you are not really interested in crossing your fingers and hoping your servers are working right. Which is why it is uniquely frustrating that DSC does not have anything resembling a dashboard (not a complaint really, it is early days, but in practical application not knowing something went down is...not really an option unless you like being sloppy).

The way I build my servers is, I have an XML file with a list of servers, their role, and their role GUID. Baked into the master image is a simple bootstrap script that goes and gets the build script, since I'm using DSC the "build" script doesn't really build much, itself mostly just bootstrapping the DSC process. The first script to run is:

$nodeloc = "\\dscserver\DSC\Nodes\nodes.xml"

# Get node information.
try {
	[xml]$nodes = Get-Content -Path $nodeloc -ErrorAction 'Stop'
	$role = $nodes.hostname.$env:COMPUTERNAME.role
}
catch{ Write-Host "Could not find matching node, exiting.";Break }

# Set correct build script location.
switch($role) {
	"XenAppPKG" { $scriptloc = "\\dscserver\DSC\Scripts\pkgbuild.ps1" }
	"XenAppQA" { $scriptloc = "\\dscserver\DSC\Scripts\qabuild.ps1" }
	"XenAppProd" { $scriptloc = "\\dscserver\DSC\Scripts\prodbuild.ps1" }
}

Write-Host "Script location set to:"$scriptloc
if((Test-Path -Path "C:\scripts") -ne $true){ New-Item -Path "C:\scripts" -ItemType Directory -Force -ErrorAction 'Stop' }
Write-Host "Checking build script availability..."
while((Test-Path -Path $scriptloc) -ne $true){ Start-Sleep -Seconds 15 }
Write-Host "Fetching build script..."
while((Test-Path -Path "C:\scripts\build.ps1") -ne $true){ Copy-Item -Path $scriptloc -Destination "C:\scripts\build.ps1" -ErrorAction 'SilentlyContinue' }
Write-Host "Executing build script..."
& C:\Windows\System32\WindowsPowerShell\v1.0\powershell.exe -file "C:\scripts\build.ps1"

The information it looks for in the nodes.xml file looks like this:

<hostname>
	<A01 role="XenAppProd" guid="22e35281-49c6-40f3-9fd7-ad7f8d69c84d" />
	<A02 role="XenAppProd" guid="22e35281-49c6-40f3-9fd7-ad7f8d69c84d" />
	<A03 role="XenAppProd" guid="22e35281-49c6-40f3-9fd7-ad7f8d69c84d" />
	<A04 role="XenAppProd" guid="22e35281-49c6-40f3-9fd7-ad7f8d69c84d" />
	<B01 role="XenAppProd" guid="22e35281-49c6-40f3-9fd7-ad7f8d69c84d" />
	<B02 role="XenAppProd" guid="22e35281-49c6-40f3-9fd7-ad7f8d69c84d" />
	<B03 role="XenAppProd" guid="22e35281-49c6-40f3-9fd7-ad7f8d69c84d" />
	<B04 role="XenAppProd" guid="22e35281-49c6-40f3-9fd7-ad7f8d69c84d" />
</hostname>

I wont go any further into this as most of it has already been covered here before, the main gist of this is, my solution to this problem relies on the fact that I use the XML file to provision DSC on these machines.

There are a couple modifications I need to make to my DSC config to enable tracking, note the first item are only there so I can override the GUID from the CMDLine if I want. In reality you could just set the ValueData to ([GUID]::NewGUID()).ToString() and be fine.

The first bit of code take place before I start my Configuration block, the actual Registry resource is the very last resource in the Configuration block (less chance of false-positives due to an error mid-config).

param (
	[string]$guid = ([GUID]::NewGuid()).ToString()
)

...

Registry verGUID {
	Ensure = "Present"
	Key = "HKLM:\SOFTWARE\PostBuild"
	ValueName = "verGuid"
	ValueData = $verGUID
	ValueType = "String"
}

From here we get to the important part:

[regex]$node = '(\[Registry\]verGUID[A-Za-z0-9\";\r\n\s=:\\ \-\.\{]*)'
[regex]$guid = '([a-z0-9\-]{36})'
$path = "\\dscserver\Configuration\"
$pkg = @()
$qa = @()
$prod = @()
$watch = @{}
$complete = @{}
[xml]$nodes = (Get-Content "\\dscserver\DSC\Nodes\nodes.xml")

# Find a list of machine names and role guids.
foreach($child in $nodes.hostname.ChildNodes) {
	switch($child.Role)
	{
		"XenAppPKG" { $pkg += $child.Name;$pkgGuid = $child.guid }
		"XenAppQA" { $qa += $child.Name;$qaGuid = $child.guid }
		"XenAppProd" { $prod += $child.Name;$prodGuid = $child.guid }
	}
}

# Convert DSC GUID's to latest verGUID.
$pkgGuid = $guid.Match(($node.Match((Get-Content -Path ($path+$pkgGuid+".mof")))).Captures.Value).Captures.Value
$qaGuid = $guid.Match(($node.Match((Get-Content -Path ($path+$qaGuid+".mof")))).Captures.Value).Captures.Value
$prodGuid = $guid.Match(($node.Match((Get-Content -Path ($path+$prodGuid+".mof")))).Captures.Value).Captures.Value

# See if credentials exist in this session.
if($creds -eq $null){ $creds = (Get-Credential) }

# Make an initial pass, determine configured/incomplete servers.
if($pkg.Count -gt 0 -and $pkgGuid.Length -eq 36) {
	foreach($server in $pkg) {
		$test = Invoke-Command -ComputerName $server -Credential $creds -ScriptBlock{ (Get-ItemProperty -Path "HKLM:\SOFTWARE\PostBuild" -Name verGUID -ErrorAction 'SilentlyContinue').verGUID }
		if($test -ne $pkgGuid) {
			Write-Host ("Server {0} does not appear to be configured, adding to watchlist." -f $server)
			$watch[$server] = $pkgGuid
		}else{
			Write-Host ("Server {0} appears to be configured. Adding to completed list." -f $server)
			$complete[$server] = $true
		}
	}
}else{
	Write-Host "No Pkg server nodes found or no verGUID detected in Pkg config. Skipping."
}

if($qa.Count -gt 0 -and $qaGuid.Length -eq 36) {
	foreach($server in $qa) {
		$test = Invoke-Command -ComputerName $server -Credential $creds -ScriptBlock{ (Get-ItemProperty -Path "HKLM:\SOFTWARE\PostBuild" -Name verGUID -ErrorAction 'SilentlyContinue').verGUID }
		if($test -ne $qaGuid) {
			Write-Host ("Server {0} does not appear to be configured, adding to watchlist." -f $server)
			$watch[$server] = $qaGuid
		}else{
			Write-Host ("Server {0} appears to be configured. Adding to completed list." -f $server)
			$complete[$server] = $true
		}
	}
}else{
	Write-Host "No QA server nodes found or no verGUID detected in QA config. Skipping."
}

if($prod.Count -gt 0 -and $prodGuid.Length -eq 36) {
	foreach($server in $prod) {
		$test = Invoke-Command -ComputerName $server -Credential $creds -ScriptBlock{ (Get-ItemProperty -Path "HKLM:\SOFTWARE\PostBuild" -Name verGUID -ErrorAction 'SilentlyContinue').verGUID }
		if($test -ne $prodGuid) {
			Write-Host ("Server {0} does not appear to be configured, adding to watchlist." -f $server)
			$watch[$server] = $prodGuid
		}else{
			Write-Host ("Server {0} appears to be configured. Adding to completed list." -f $server)
			$complete[$server] = $true
		}
	}
}else{
	Write-Host "No Production server nodes found or no verGUID detected in Production config. Skipping."
}

# Pause for meatbag digestion.
Start-Sleep -Seconds 10

# Monitor incomplete servers until all servers return matching verGUID's.
if($watch.Count -gt 0){ $monitor = $true }else{ $monitor = $false }
while($monitor -ne $false) {
	$monitor = $false
	$cleaner = @()
	foreach($server in $watch.Keys) {
		$test = Invoke-Command -ComputerName $server -Credential $creds -ScriptBlock{ (Get-ItemProperty -Path "HKLM:\SOFTWARE\PostBuild" -Name verGUID -ErrorAction 'SilentlyContinue').verGUID }
		if($test -eq $watch[$server]) {
			$complete[$server] = $true
			$cleaner += $server
		}else{
			$monitor = $true
		}
	}

	foreach($item in $cleaner){ $watch.Remove($item) }

	Clear-Host
	Write-Host "mConfigured Servers:`r`n"$complete.Keys
	Write-Host "`r`n`r`nmIncomplete Servers:`r`n"$watch.Keys
	if($monitor -eq $true){ Start-Sleep -Seconds 10 }
}

Clear-Host
Write-Host "Configured Servers:`r`n"$complete.Keys
Write-Host "`r`n`r`nIncomplete Servers:`r`n"$watch.Keys

End of the day is this a perfect solution? No. Bear in mind I just slapped this together to fill a void, things could be objectified, cleaned up, probably streamlined, but honestly a powershell script is not a good dashboard. I would also rather the servers themselves flag their progress in a centralized location rather than being pinged by a script.

But that is really something best implemented by the PowerShell devs, as anything 3rd party would, IMO, be rather ugly. So if all we have right now is ugly, I'll take ugly and fast.

As always, use at your own risk, I cannot imagine how you could eat a server with this script but don't go using it as some definitive health-metric. Just use it as a way to get a rough idea of the health of your latest configuration push.

App-V 5: Run As Different User

Ever tried to run an App-V 5 app as another user, say your elevated account, and got a whole lot of nothing? Maybe at most you got a 1530 event log entry in Applications?

Hit start, type powershell, right click on "PowerShell" and select "Run As Different User", enter the credentials of the account you are trying to use.

Once powershell comes up type the following:

Sync-AppvPublishingServer 1

This will sync that user accounts App-V package store and you should now be able to Run As... to your hearts content.

PowerShell: DSC Sometimes Killing The Provider Isn't Enough...

A timely post considering the previous one. I've had a lot of problems with configurations just seemingly not taking affect. The only way I've seen to clear this up is by deleting the following files on the target machine:

"C:\Windows\System32\Configuration\Current.mof"
"C:\Windows\System32\Configuration\Current.mof.checksum"
"C:\Windows\System32\Configuration\DSCEngineCache.mof"
"C:\Windows\System32\Configuration\backup.mof"

In my case I was syncing files and for the life of me could not get it to see the newest addition to the directory, I could delete older files/folders and it would replace them, but it patently refused to ever copy out the new one. Deleted these files, let DSC run, I could delete the new file/folder to my hearts content and it would always put it back down next time DSC passed.

To batch fix your servers (this assumes you have them all in an AD group, you could just create an array and pass it):

if($creds -eq $null){ $creds = Get-Credential }
foreach($member in (Get-ADGroupMember <groupname>)) {
	$member.Name
	Invoke-Command -ComputerName $member.Name -Credential $creds -Scriptblock{
		$strPath = "C:\Windows\System32\Configuration\"
		$arFiles = @("Current.mof","Current.mof.checksum","DSCEngineCache.mof","backup.mof")
		foreach($item in $arFiles) {
			Write-Host "Removing: $strPath$item"
			Remove-Item -Path "$strPath$item" -Force
		}
	}
}

Write-Host "This is a test, and can be removed later."

return $false

Be warned that this should ONLY be done if you are having the problem accross the board, otherwise just invoke-command on the individual servers or, if only a portion are having problems just feed in an array. In my case EVERY server was failing on this File operation so killing it accross the board made sense. But it is still not something I would take lightly (batch deleting files never is).



PowerShell: DSC Example Configuration

I figured I would give a more practical and slightly more complex example config, which you can find here.

Anything in <> was stripped for security sake but the overall gist of it is there, zAppvImport is a custom DSC resource I wrote to ensure the contents of a path are imported onto a XenApp server, there are a couple weird things I had to account for in this build, namely the legacy apps and the permissions I need to set. These installer for one no longer exists so a file copy is the only way and the other one has a terrible old installer than hangs half the time so it gets the same treatment (it HATES Windows Installer for some reason which seams to corrupt the files no matter what so a file copy it is).

This is just an example of a custom App-V XenApp 6.5 server config (that isn't done) that goes from barebones to configured in these few, relatively simple, steps.

PowerShell: DSC, Custom Modules, Custom Resources, and Timing...

Hypothetical situation, you want to accomplish the following:

  • Install the App-V 5.0 SP2 client.
  • Configure the client.
  • Restart the service.
  • Import App-V sequences.

If that sounds simple to you, then you haven't tried it in DSC.

If fairness it isn't THAT complex, but it isn't very straight forward either, and there is little real reason for it to be complicated beyond a simple lack of foresight on the part of the DSC engine.

The first three tasks are very simple, a Package resource, a Registry resource, and a Script resource. But that last bit is tricky, and that is because it needs the modules installed in step 1 in order to work, but given that the DSC engine loads the ENTIRE script (which is normal for powershell, but given the nature of what the DSC engine does this is, IMO, a BIG hinderance) they aren't there when it first processes, so it pukes. You can tell this is your problem if you see a "Failed to delete current configuration." error (the config btw should at that point be visible right where WebDownloadManager left is, C:\Windows\Temp\<seriesofdigits>) as well as a complaint that the module at whatever location could not be imported because it does not exist.

So what is the solution?

Sadly kind of convoluted. First lets look at the config. Pretty simple, I call a custom resource that imports the App-V sequences and in that custom resource I have a snippet of code at the very top:


$modPath = "C:\Program Files\Microsoft Application Virtualization\Client\AppvClient"

if((Test-Path -Path $modPath) -eq $true){ Import-Module $modPath }else{ $bypass = $true }



Now lets look at the script baked into the PVS image:

  • Enable WinRM. Easier to do this than undo it in the VERY unlikely case we dont want it, DSC needs it so...
  • Create a scripts directory. Not terribly important, you could just bake your script into this path.
  • Find this hosts role/guid from an XML file stored on the network.
  • Create LCM config.
  • Apply LCM config.
  • Copy modules from DSC Module share. This overlaps with the DSC config but the DSC config will run intermittently, not just once, for consistency.
  • Shell out a start to the Consistency Engine.

This last bit is VERY important in two regards. The first is that if you just run powershell.exe with that command it WILL exit your script. The only way I've found to prevent this is to shell out so that it closes the shell, not your script. StartInfo.UseShellExecute is thus very important.

The second important bit is wiping out the WMI provider, without this it waited three minutes and ran again and promptly behaved like the $bypass was still being tripped, even though I could verify the module WAS in fact in place, I do not like this caching at all.

So the first time I run consistency I know it wont put everything in place, because it needs the client installed before the client modules exist and even with DependsOn=[Package]Install it still pukes, depends on doesn't seem to have any impact on how it loads in the resources.

I wait three minutes because I want to give the client time to install, I don't love this but this is just example code, in reality you would mainly be concerned with two things:

  1. Is the LCM still running.
  2. Is the client installed.

So I would probably watch event viewer and the client module folder before making my second run, timing out after ten minutes or so (in this case 15 minutes later the scheduled task will run it again anyway, don't want to get in the way).

Why bother with this? Mainly because I don't want to wait half an hour for my server to be functional. I run them initially back to back because I can either bake the GUID in, or use a script to "provision" that, while I'm there why rely on the scheduled task? This is on a Server 2008 R2 server so I can't use the Get-ScheduledTask cmdlet, and while yes I could bake in the Consistency task with a shorter trigger and change it in my DSC config...but that is just as much work and more moving parts.

I want to configure and make my initial pass as quickly as is safe to do so, and then allow it to poll for consistency thereafter.



PowerShell: Configure Client for DSC Pull

The final piece of the puzzle here is configuring a client to actually pull it's config from the server you created.

The script.

The thing I will note about the GUID you use is, what guid you use depends on how you intend to set up DSC.

There are many ways to skin this cat, you can use one GUID per role, say XenApp = 6311dc98-2c2a-4fbe-a8bc-e662da33148e and App-V = 6b5dac21-6181-400f-8c7a-0dd4bfd0926d, this allows you to keep the GUID count/management low, but also makes it difficult to target specific nodes (though how important that is, I leave up to you, for me, I want all my App-V servers to look alike and the same for my XenApp Servers).

You can generate a GUID on the fly like this:

[guid]::NewGuid().Guid

And then keep track of them in a database. Managing this is going to require more legwork though is you provision servers.

Ultimately, for now, I am using the one GUID per role method.

The second note here is that you do NOT want to use HTTP, if you can, PLEASE use SSL, this script does NOT use SSL, but it is harder to find info on setting it up without SSL than with so...remove the following snippet from DownloadManagerCustomData to enforce SSL:

;AllowUnsecureConnection = 'True'

Once you have this tweaked to your liking you can apply the configuration by running:

Set-DscLocalConfigurationManager -Path

PowerShell: Create DSC Pull Server

This is a slightly modified version of the script example MS posted ot the Gallery, this one a) works and b) installs EVERYTHING you need to build a DSC Pull server, not just hope it's there.

The custom resource: Can be found here.

The script: Can be found here.

I would advise extracting the files to C:\Windows\System32\WindowsPowershell\v1.0\Modules and making sure you right click->Properties->Unblock the .ps1 files.

Once you create configs they go here: C:\Program Files\WindowsPowerShell\DscService\Configuration

Remember, for Pull mode the node names MUST be GUID's and those GUID's MUST match the clients ConfigurationID, you can see the clients CID by typing:

Get-DscLocalConfigrationManager

PowerShell: DSC Quirks, Part 3

Getting the following error?
Importing module MSFT_xDSCWebService failed with error - File C:\Program Files\WindowsPowerShell\Modules\xPSDesiredStat
eConfiguration_1.1\xPSDesiredStateConfiguration_1.1\xPSDesiredStateConfiguration\DscResources\MSFT_xDSCWebService\MSFT_
xDSCWebService.psm1 cannot be loaded because you opted not to run this software now.

Importing module MSFT_xDSCWebService failed with error - File C:\Program Files\WindowsPowerShell\Modules\xPSDesiredStateConfiguration_1.1\xPSDesiredStateConfiguration_1.1\xPSDesiredStateConfiguration\DscResources\MSFT_xDSCWebService\MSFT_xDSCWebService.psm1 cannot be loaded because you opted not to run this software now.

Copy it to C:\Windows\System32\WindowsPowerShell\v1.0\Modules

At this point I would ignore MS and just always put your modules there.

PowerShell: DSC Quirks, Part 2

In this episode:

Why does my config seem to use an old resource version?

Why is WmiPrvSE using up SO much memory?

The solution to both of these is actually the same:

gps wmi* | ?{ $_.Modules.ModuleName -like "*DSC*" } | Stop-Process -Confirm:$false -Force

This kills the WMI provider for DSC and forces it to launch a new one. As to why, well in the first instance I imagine the engine caches the script, and I bet there is a timeout before it will pick it up again. In the second case...it's WMI, either your script or the machine or just the alignment of the planets made it all emo, kill it and move on.

This command, btw, can absolutely be run against multiple machines remotely via WinRM. Not only that but it can be monitored remotely as well. So if you have a problem, script out a monitor/resolver, it seems fairly sturdy in the sense that if you kill it mid-action it just bombs that run, next time the DSC task runs it fires up a new instance and goes on about it's business. If the problem is chronic, I would review your code...

PowerShell: DSC Quirks, Part 1

Just going to catalog a few of the things I've seen crop up from time to time with DSC, starting with:


  • Cannot Import-Module
  • Cannot import custom DSC resource (even though Get-DscResource says it is there)


For that first one the solution is usually pretty simple, the AppvClient module is case in point. Instead of this:

Import-Module AppvClient

Do this:

Import-Module "C:\Program Files\Microsoft Application Virtualization\Client\AppvClient"

You can find the exact location by typing:

(Get-Module AppvClient).Path

The folder, and this is important, the FOLDER the .ps1d is in should be provided to Import-Module, it will do the rest, don't try to point it right at the .ps1d or anything else for that matter.

The second problem I have only seen on Server 2008 R2 with WMF 4.0 installed. What you will no doubt quickly learn is that you should put your DSC modules here:

C:\Program Files\WindowsPowershell\Modules

Or worst case if x86, here:

C:\Program Files (x86)\WindowsPowershell\Modules

And if you put them there and type:

Get-DscResource they will indeed show up, run a config using them however and it will error out saying they couldn't be found. Unless you put there here:

C:\Windows\System32\WindowsPowerShell\v1.0\Modules

Why does it do this? I don't know, I suspect it is because WMF 4.0 is rather tacked on by now when it comes to Server 2008 R2, frankly if this is the price I have to pay for being able to use this on XenApp 6.5 servers, so be it!

PowerShell: DSC Custom Resource

IMO the DSC information out there right now is kind of all over the place, and worse some of it is outdated, so I'm going to collect a few guides here, starting a bit out of order with a guide on how to write your own custom DSC resource. Later I'll put one together for configuring a DSC Pull server and then one on how to configure a client for DSC Pull operations.

First things first, you need this: xDscResourceDesigner

We wont be using any of the other functionality of it, but it at the very least is handy for creating the initial structure. Extract it like it says but most likely depending on your setup you are going to need to teomporarily run with an Unrestricted ExecutionPolicy. I couldn't unflag it to save my life and frankly didn't spend much time on it, remember to set your policy back after using it and there are no worries.

Anyway, the first thing you need to know is, what do you need to know? We are going to create something really simple here, a DSC Resource to make sure a file exists and set its contents. So we need a Path and Contents, then we need the mandatory Ensure variable, so our first bit of code is going to look like this:

PasteBin

What is essentially going on here is we are setting up our variables and then building the folder structure and MOF for our custom resource. Saving it all to our PSModules path so once you run this command you should be able to Get-DscResource and see zTest at the bottom of the list.

Now we have a script to modify, this script is located in the DSCResources sub-folder in the path we just specified. There are a couple things to know about this:

The Test Phase

This is where LCM looks to validate the state of the asset you are trying to configure. In our case, does this file exist? And what are its contents? So the content of your Test-TargetResource script will probably look a little something like:

if((Test-Path $Path) -eq $true){ if((Get-Content $Path) -eq $Content){ $return = $true }else{ $return = $false }else{ $return = $false }

That is pretty messy and all one line but you get the idea, there is no logic built in, you need to provide all the logic. Whether that be ensuring that you don't just assume that because the file exists it must have the right contents, or the logic to ensure that if $Ensure is set to "Absent" that you are removing the file thoroughly, handling errors, not outputting to host, etc. etc.

So assuming you do not have the file already and we run this resource, it will run through the Test-TargetResource and return $false, at which point if you set Ensure="Absent" it will be done, if you set it to "Present" it will move on to Set-TargetResource. Which will probably look something like this:

if($Ensure -eq "Present") {
	New-Item -Path $Path -ItemType File -Force
	Set-Content -Path $Path -Value $Content
}elseif($Ensure -eq "Absent") {
	Remove-Item -Path $Path -Force -Confirm:$false
}

Again, this is quick and dirty and not meant to represent the most robust function possible for creating/populating a file or deleting it thoroughly. Liberal use of try/catch and thinking about ways it could go wrong (including doing a little of your own validation to make sure what you just did took hold) are recommended.

The Test function MUST return $true or $false, Set does not need to (should not?) return anything at all, which leaves: Get-TargetResource

For now I'm not going to go too far into this, I'll just say that in reality this appears to be an informational function that allows you to pull information about the asset in question without actually doing anything. It MUST return a hastable of information about the object (usually the same information, sans Ensure, that you provide to the script). i.e.

$returnVal = @{
	Path = $Path
	Content = (Get-Content -Path $Path)
	Ensure = $Ensure
}

Again how strictly this is enforced and how much is really needed...in this example I would almost say not at all. You could just as easily replace $Path with (Test-Path -Path $Path) and drop Ensure entirely I think. I haven't tested the boundaries of how strictly you have to adhere to input->outputin this case.

Once all of this is done you should be able to do the following and get a usable mof ready to be executed:

Configuration Test {
	Import-DscResource -Module zTest
	Node "localhost" {
		zTest Testing {
			Ensure = "Present"
			Path = "C:\test.txt"
			Content = "Hello (automated) World!"
		}
	}
}

$output = "C:\\"
Test -OutputPath $output
Start-DscConfiguration -Verbose -Wait -Force -Path $output

Please note that the OutputPath argument isn't required, without it the script will just spit out a mof in, well in this case it will create a folder called Test in whatever folder you are currently in and put it in there. I like to specify it so I know where my mof's are. Once you call it with that final command you should see LCM spit out a bunch of information regarding the process and any errors will show up there as well as in the Event Viewer.

Please note that a well written DSC Resource should be able to be run a million times and only touch something if it isn't in compliance. Meaning that if the script doesn't detect the file is missing or the contents are different from what they should be, it should effectively do nothing at all. It shouldn't set it anyway just to be sure, it shouldn't assume, it shouldn't cut corners, or hope and pray. The entire point here is to ensure consistent state accross an environment. The better your script is, the more reliable, and resilient, forward thinking and robust, the better your resource will be.

In the case of this Resource, if I planned on taking it farther I would probably make sure I had rights to the file before messing with it, include a try/catch around file creation and content placement, I would check the file existed once more with a fresh piece of memory (if you end up setting the content to a variable) and validate the contents afterwards as well. You could build in the option to allow forcing a specific encoding type to convert between UTF-32 and UTF-8 or ASCII if you wanted, provide options for Base64 input encoding (in case you wanted to handle script strings for instance, or you could make sure to escape and trim as needed) etc. etc.

The point being, it is easy to write something quick that will rather blindly carry out an action. But in the long run you need something that is going to be feature rich and robust to match.

And don't forget, if you don't copy the folder structure to the client machines, they wont have access to your Resource. The path we created this in on our workstation is the same path it needs to live on every other machine, and once it does, they too will be able to use the Resource.
